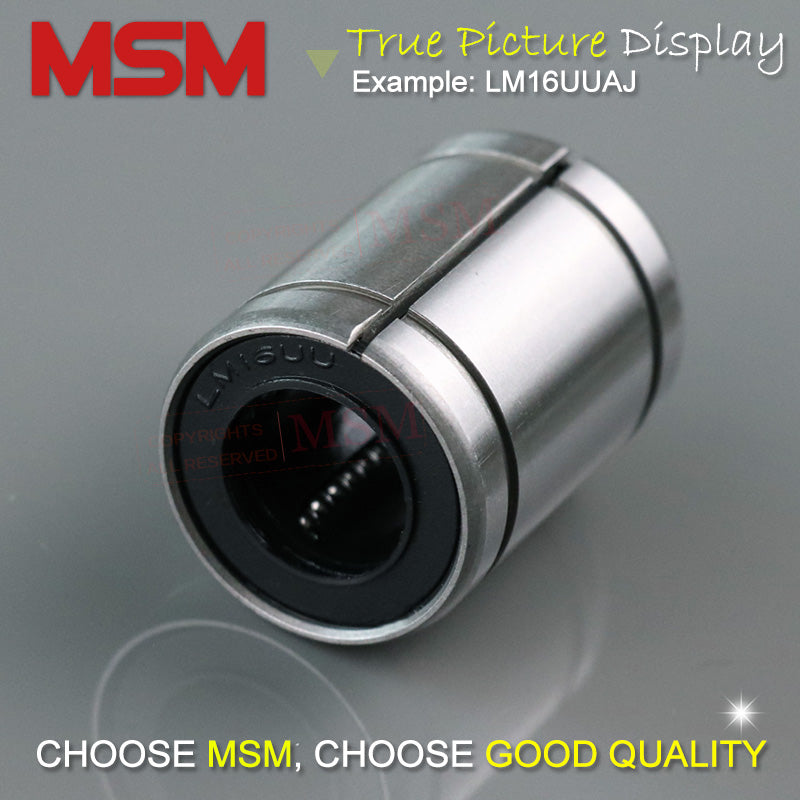

10pcs MSM Clearance Adjustable Linear Bearings LM8UUAJ LM10UUAJ LM12UUAJ LM16UUAJ LM20UUAJ Slide Motion Ball Bushings

10pcs MSM Clearance Adjustable Linear Bearings LM8UUAJ LM10UUAJ LM12UUAJ LM16UUAJ LM20UUAJ Slide Motion Ball Bushings

Regular price ¥123.00 CNY
Regular price ¥176.00 CNY Sale price ¥123.00 CNY
-30% OFF Sold out
Shipping calculated at checkout.
Model
Number of PCS
View full details
shpping-guide_04

    Item Name: Clearance Adjustable Type Linear Bearing / LM...UUAJ Series

    Model No. :  Please Select  (Packing Detail : 10 pcs/lot)

    Quality Grade: High Grade

    Main Dimensions:  Detail size in the belowing datasheet

    Main Applications:  CNC parts, 3d printer parts, Automation parts, Electric tool parts

     NTOE about product:



     1. We can supply full series of linear bearing, for example:



         closed type, open type, adjustable type, tandem type, flange type, housing type, etc.



         if you can not find the models in our store, please feel free to contact us;


     2. For volume order or heavy weight order, please contact us for better price or shipping rate.
fit tolerance

   * For LM...UUAJ type linear bearings,  g6 tolerance linear shaft is recommended.

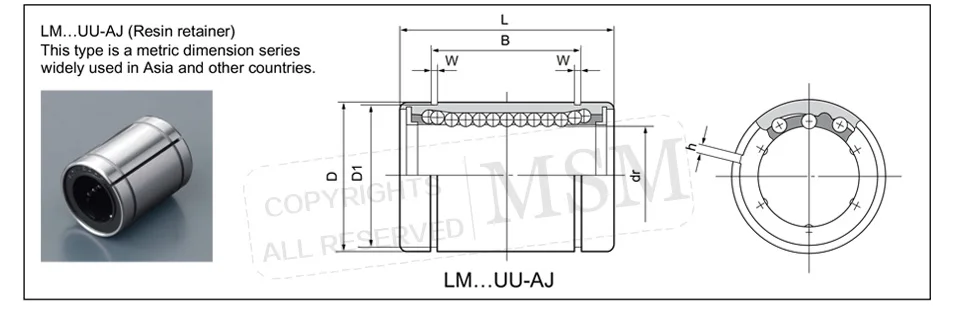

datasheet_LMAJ_01

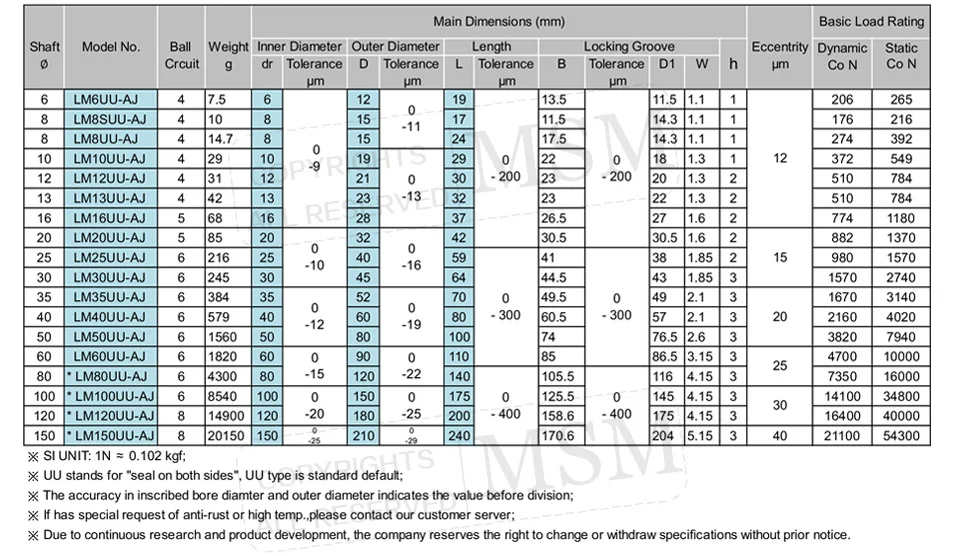

datasheet_LMAJ_02

linear bearing comparision 01



linear bearing comparision 02

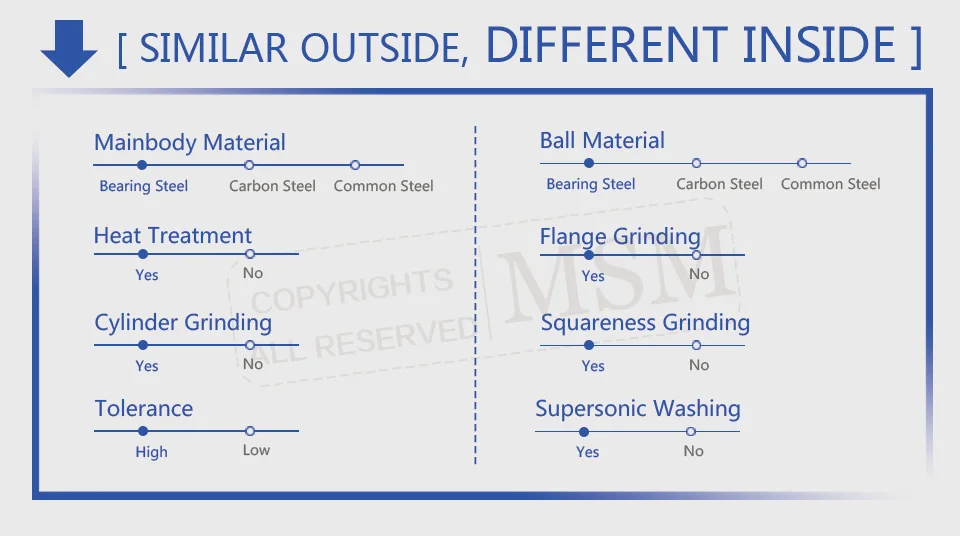

linear bearing-similar and different

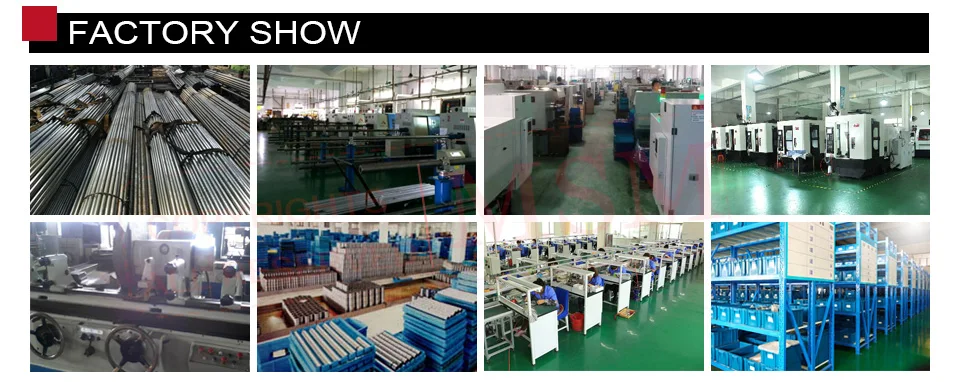

factory-show
