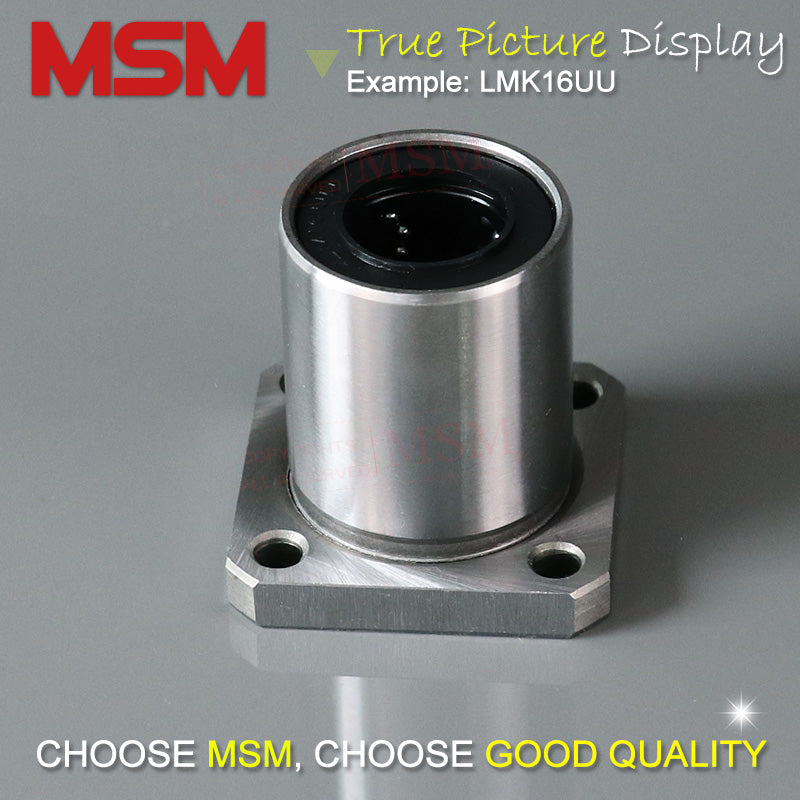

Item Name: Square Flange Linear Bearing / LMK...UU Series (alias LHFS/SMK)
Packing Include: 4pcs
Model: Please select
Order Example: If your shaft diameter is 8mm, then you select LMK8UU, other size likewise
Note: Norminal size of all items have tolerence, actual product shall prevail.
Quality Grade: Precision
Material: Steel Bush+Steel Ball+Resin Retainer+Rubber Seal
Main Applications: CNC parts, 3D printer parts, Automation parts
Tips for Shaft: g6 tolerance, Hardness HRC60-64, Roughness less than Ra0.8, Srtaightness: 50μm/300mm
Product Features:
- Brand: MSM

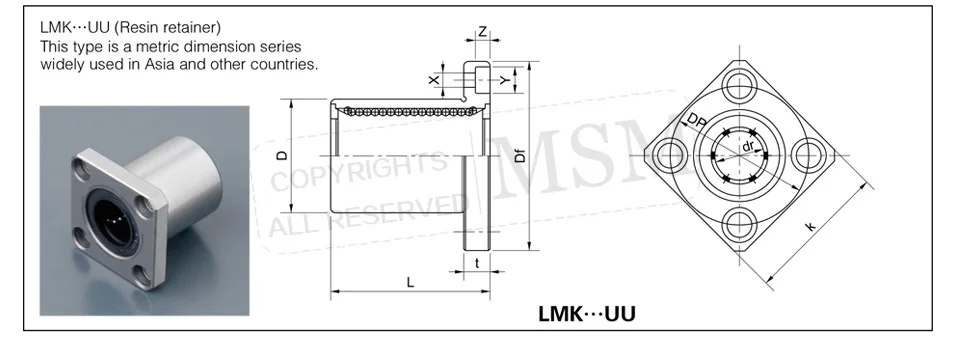

- Square Flange, Four Mounting Holes, Standard Length.
- Industrial Grade, Little Backlash, Run Very Smoothly.
- Metric Dimension, Widely Used in Asia and Other Countries.
- Online Shopping, Quick Shipping, Safe Payment.
